Internet of Things (IoT)

RIoT Secure AB


Security has been a hot topic for IoT - but sometimes things can be released too early.

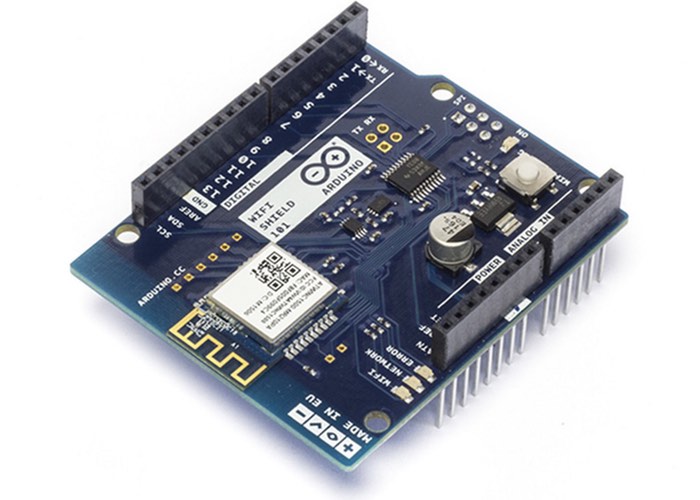

I reported on the announcement of the Arduino WiFiShield 101 a while ago but after a year of waiting; the device has been released to the market and as such retiring the existing WiFiShield. Has it's introduction been a stunning hit or has it been a massive flop - one way to find out is the review the forums to see the teething issues popping up and how they are being responded to.

The good news is that the WiFi101 library is 1:1 matching the existing WiFi library so that will make transition of existing code quite easy; just a matter of changing the header file being included in the start of the sketch to WiFi101.h instead of WiFi.h.

As for changes; there is now support for connecting to WPA2 Enterprise WiFi networks and the inclusion of a new function, connectSSL that has been provided to allow for HTTPS connections at both an IP and URL level on a specific port. The documentation of the function contains something that raised my eye brows and needs clarification:

    Before using this method, it is required to load the SSL certificate used by the server into the Arduino WiFi Shield 101. The shield comes already loaded with certificates and it should be ready to use. To change or upload new SSL certificates you should follow the procedures that will be made available.
    source: https://www.arduino.cc/en/Reference/WiFi101ClientConnectSSL

Say what - one must upload the servers SSL certificates to the shield in advance?

Tim over on the Arduino forums posted a question about this where he states he can connect to the arduino.cc:443 domain as shown in the example but not his own website. After a month; the question doesn't seem to be answered so it does raise some concerns - also, the procedure to upload a new SSL certificate isn't available yet; so how useful is the shield right now?

Another community member raises the concern about the amount of space the WiFi101 library uses - just a very basic setup where the scan for network stage is met and it uses 59% of the available flash on the Arduino UNO, not leaving much for doing anything else.

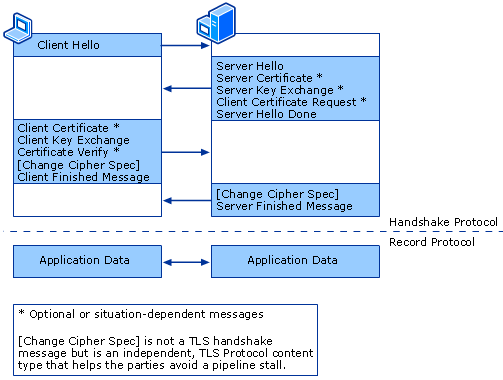

It would be interesting to know exactly what level of transport layer security is actually supported - given the limited memory of the devices processing a X.509 certificate is quite difficult on the low powered devices. One user has outlined the various methods (basics shown below) behind SSL/TLS - it looks like the library may only support RSA key exchange where the client encrypts 48 bytes (46 random) with the servers public key and there is no ServerKeyExchange.

I will keep an eye on the discussion and watch how the documentation gets updated - but I think there needs to be a little clarification on how the shield actually works and what level of TLS is supported before one dives in and purchases these for production. It looks like it needs a little move love to mature before being ready for the market.
